Large Ozone generator spare parts 100G 200G 300G 500G ozone tube for water and wastewater treatment
100G ozone tube for ozone components ozone generator tube
Ozone system equipment components:

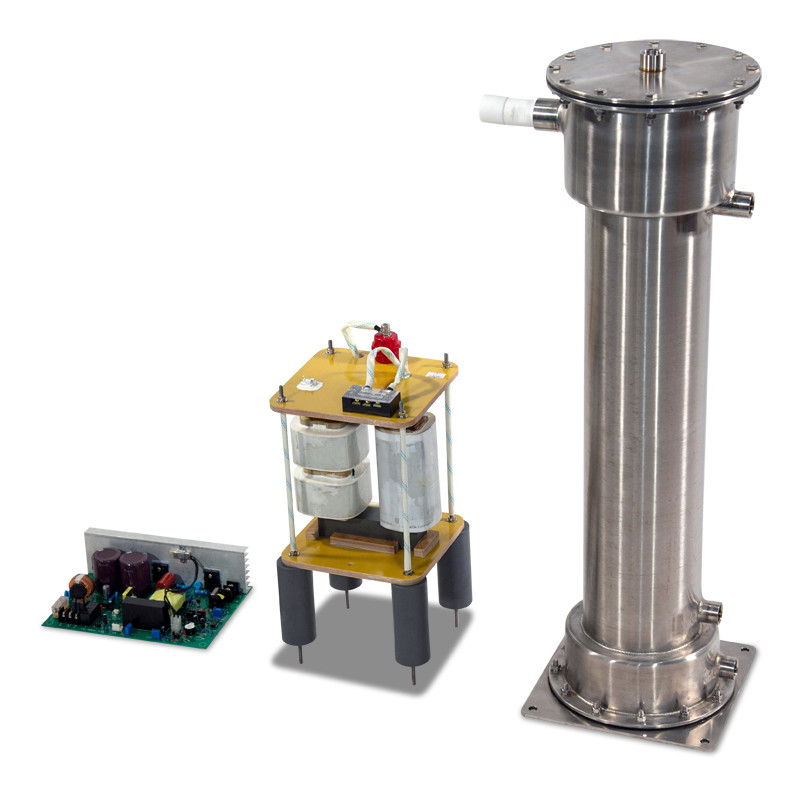

This ozone system consists of ozone discharge chamber, smart power supply and high voltage transformers.
System technological process:
The ozone system use stainless steel discharge chamber, and with high dielectric constant, uniform wall thickness, good ovality, high temperature resistance and moisture resistance quartz tubes, with smart and reliable power supply and high voltage transformer.
Features:
1. Free of insurance tube, not easy to break down;
2. Industrial processing, good concentricity. High processing accuracy;
3. The internal and external electrodes are made of 316L material, no rust, no influence on conductive efficiency;
4. Can be arranged honeycomb type, single machine can do a large output, high production, high efficiency, high concentration.
5. Ozone concentration can be around.80~120 Mg/L, which is much higher than conventional products.
6. Easy to maintain and install.
100G ozone tube for ozone components ozone generator tube

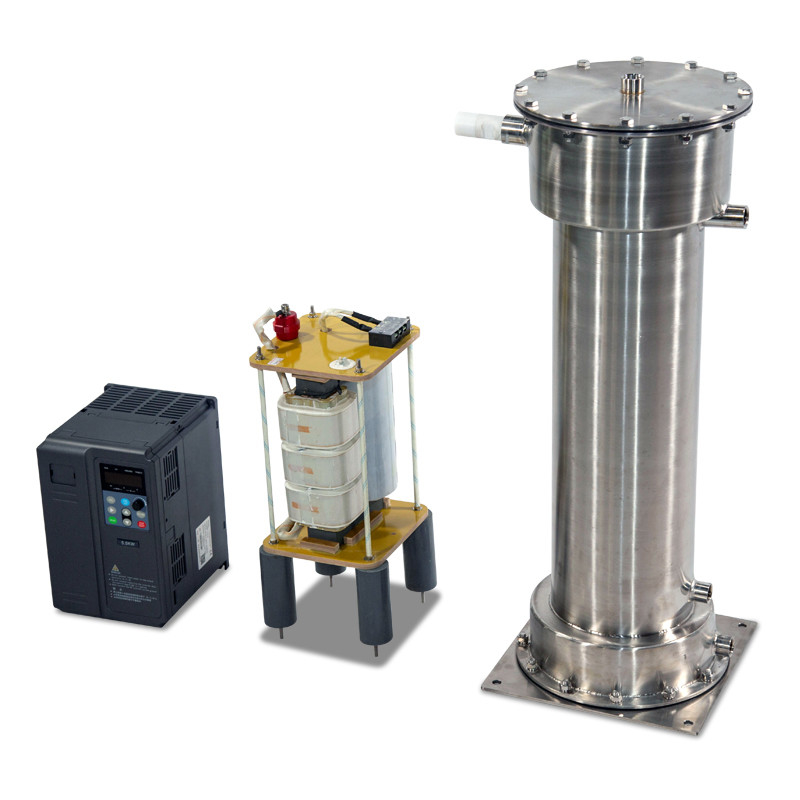

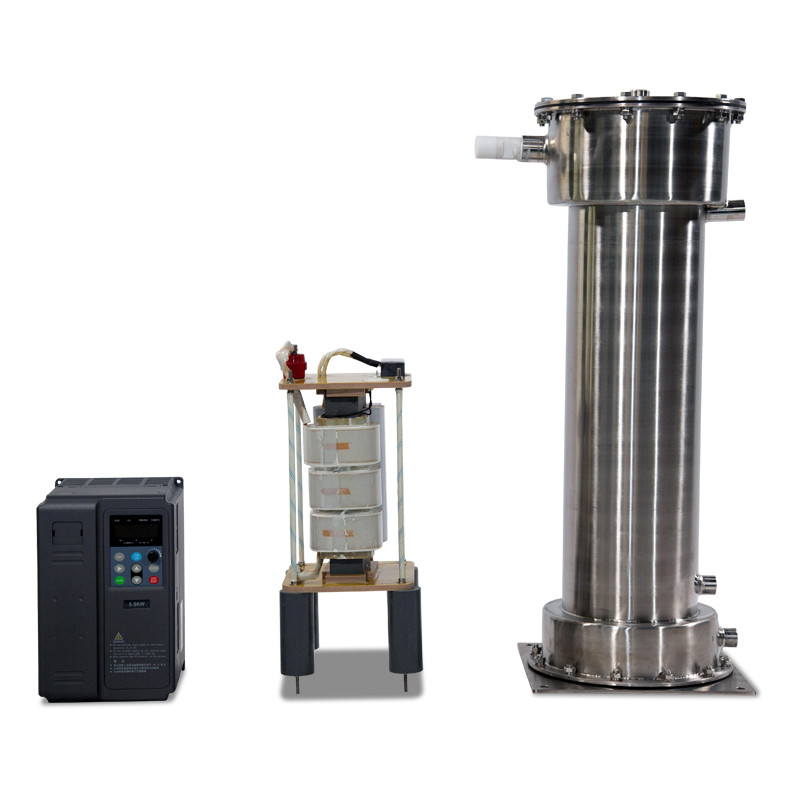

CH-DGP 100G, 200G, 300G, 500G, 1000G Ozone discharge chamber with power supply and transformer
Item | CH-DGP Series ozone Generator | |||
Ozone Output (G/Hr) | 100G/Hr | 200G/Hr | 300G/Hr | 500G/Hr |
Ozone Concentration(mg/L) | 90-110 | 80-120 | 80-120 | 80-120 |
Oxygen flow rate | 1.2m³/h | 1.6m³/h | 3m³/h | 4Nm3/h |
Power supply | 800W | 5.5KW | 7.5KW | 15KW |
Power supply size (mm) | 210*150*60 | 248*160*186 | 248*160*186 | 322*208*194 |
Power supply weight (KG) | 0.65 | 3 | 5 | 6.7 |
Transformer consumption | 2 KW | 5 KW | 5 KW | 15 KW |
Transformer size(mm) | 180*175*370 | 180*175*370 | 180*175*370 | 345*305*545 |
Transformer weight (KG) | 5.7 | 8.8 | 8.8 | 17 |
Ozone discharge chamber size (mm) | 300*220*720 | 340*270*720 | 390*320*725 | 315*470*1235 |
Ozone chamber weight (KG) | 18.2 | 31 | 41 | 41 |
