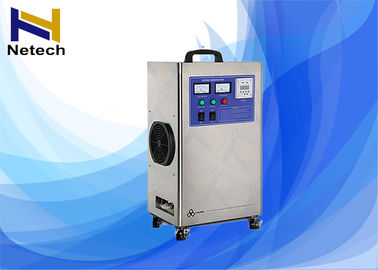

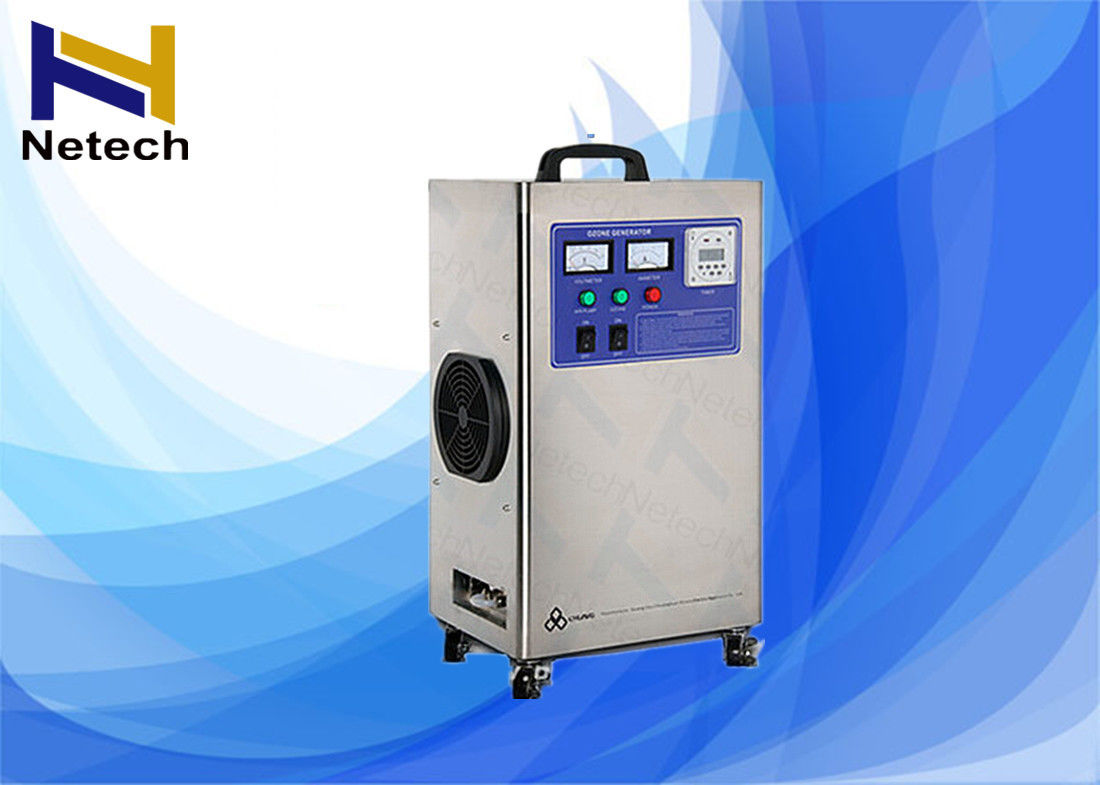

Clean Air Industrial Ozone Generator / Ozone Air Purifier Mold 20g/h
1. Quick details
Brand Name: Netech
Model Number: NT-T-N
Certification: domestic
Ozone output way: air cooled
Adjustable rate: 20-100% adjustable ozone
Description
Gas source | Air source |
Oxygen flow rate | 0.5-10 LPM |
Material | Ceramic tube |
Cooling | Air cooled |
Power supply | 220V,50HZ |
Ozone output | 2g/3g/5g/6g/10g/15g/20g |
Size | 360*260*610/400*300/770mm |
Control panel:
Voltmeter, Ammeter, Switch, Timer, Working light, Power light etc.
Timer: One or Two recycle working time
Applications:
1. treatment industry: clean sick room, operating room, treatment equipment, aseptic room, etc
2. Fruits and vegetables: keep fruits and vegetables fresh and store them
3. Slaughtering: Remove smell of slaughtering and kill bacteria, clean production water supply.
4. Poultry factory: Remove smell of poultry factory and kill bacteria,clean water for poultry feeding.
5. Commercial use in House, hotel, Office, KTV, Super Market, Fruit shop etc.
Air Purifier: Remove formaldehyde, benzene compounds, Smoke, Odors, Molds, Virus to fresh air.
6. Water purifier: clean production Water supply.
7. Bottle Water, Domestic Water, Well Water, Pool Water cleanion & clean
Features:
1. Built in Domestic ed Product -Air cooling ceramic ozone generator
2. Built in Automatic air dryer, Feed dry air or outside oxygen source
3. Connect with external ozone injector for water treatment
4. It can be Movable with wheels & Handles or Wall mounted.
5. No breakdown with easy operation and maintenance.
Specification:
Item | Unit | NT-T-N | ||||||
2G | 3G | 5G | 6G | 10G | 15G | 20G | ||
Oxygen flow rate | LPM | 0.5~2 | 1~3 | 1.2~3 | 1.5~3.5 | 2.4~6 | 3.6~9 | 3~10 |
Ozone concentration | Mg/L | 28~50 | 28~65 | 32~60 | 28~56 | 32~60 | 32~60 | 38.9~42 |
Ozone output | G/Hr | 1.5~3.0 | 4~5.0 | 4.3~5.7 | 5.0~5.8 | 8.6~14.5 | 13~17 | 18.6~20 |
Power | W | 115 | 135 | 160 | 185 | 260 | 330 | 400 |
Air flow rate (Suggested) | LPM | 40~60 | 50~75 | 50~90 | ||||
Compressed air pressure | Mpa | 0.025 | ||||||
Fuse of power supply | A | 3 | 5 | 5 | 5 | |||
Size | cm | 36×26×61 | 40×30×77 | |||||
Net Weight | kg | 11.25 | 11.30 | 11.50 | 18 | 20 | 35 |
Noted:
1. Above ozone capacity were tested under oxygen source
2. Net weight will be 10% different for different plug.
Quality control
Every procedure has personnel inspection.
All the products must be tested and qualified before packaging.
After sales service
We provide 12 month free maintenance.
The buyer should return the product in the original conditions to us and should bear the shipping costs for return.
