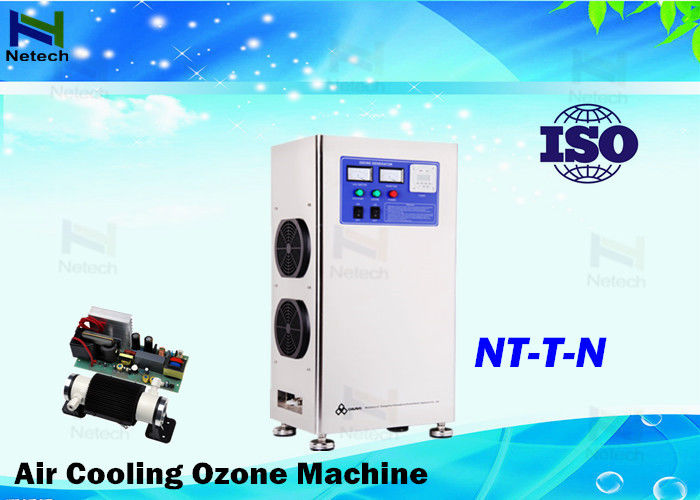

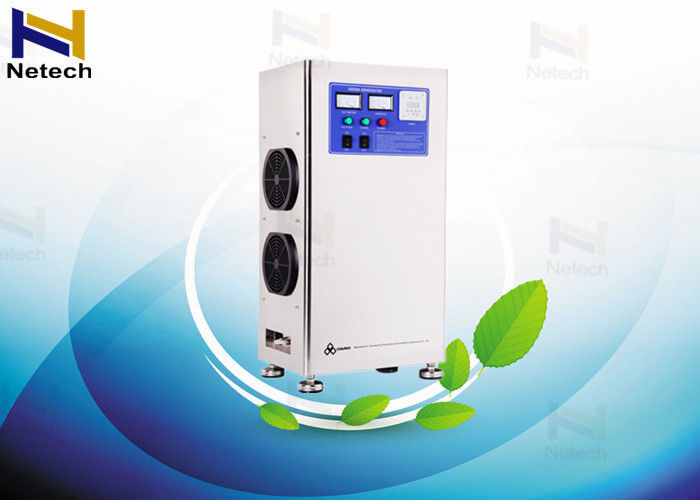

220V Air Cooling Industrial Ozone Generator 2-20G Air Clean Or Water Treatment
1. Applications
treatment industry: clean sick room, operating room, treatment equipment, aseptic room, etc
Fruits and vegetables: keep fruits and vegetables fresh and store them
Slaughtering: Remove smell of slaughtering and kill bacteria, clean production water supply.
Poultry factory: Remove smell of poultry factory and kill bacteria,clean water for poultry feeding.
Commercial use in House, hotel, Office, KTV, Super Market, Fruit shop etc.
Air Purifier: Remove formaldehyde, benzene compounds, Smoke, Odors, Molds, Virus to fresh air.
Water purifier: clean production Water supply.
Bottle Water, Domestic Water, Well Water, Pool Water cleanion & clean
2. Features
Built in Domestic ed Product -Air cooling ceramic ozone generator
Built in Automatic air dryer, Feed dry air or outside oxygen source
Connect with external ozone injector for water treatment
It can be Movable with wheels & Handles or Wall mounted.
No breakdown with easy operation and maintenance.
3.Specification
Item |
Unit | NT-T-N | ||||||
2G | 3G | 5G | 6G | 10G | 15G | 20G | ||
Oxygen flow rate | LPM | 0.5~2 | 1~3 | 1.2~3 | 1.5~3.5 | 2.4~6 | 3.6~9 | 3~10 |
Ozone concentration | Mg/L | 28~50 | 28~65 | 32~60 | 28~56 | 32~60 | 32~60 | 38.9~42 |
Ozone output | G/Hr | 1.5~3.0 | 4~5.0 | 4.3~5.7 | 5.0~5.8 | 8.6~14.5 | 13~17 | 18.6~20 |
Power | W | 115 | 135 | 160 | 185 | 260 | 330 | 400 |
Air flow rate (Suggested) | LPM | 40~60 | 50~75 | 50~90 | ||||
Compressed air pressure | Mpa | 0.025 | ||||||
Fuse of power supply | A | 3 | 5 | 5 | 5 | |||
Size | cm | 36×26×61 | 40×30×77 | |||||
Net Weight | kg | 11.25 | 11.30 | 11.50 | 18 | 20 | 35 |
1. Above ozone capacity were tested under oxygen source
2. Net weight will be 10% different for different plug.
4. Quality control
Every procedure has personnel inspection.
All the products must be tested and qualified before packaging.
