PVDF Black Venturi With Different Water Flow Rate For Water Treatment System

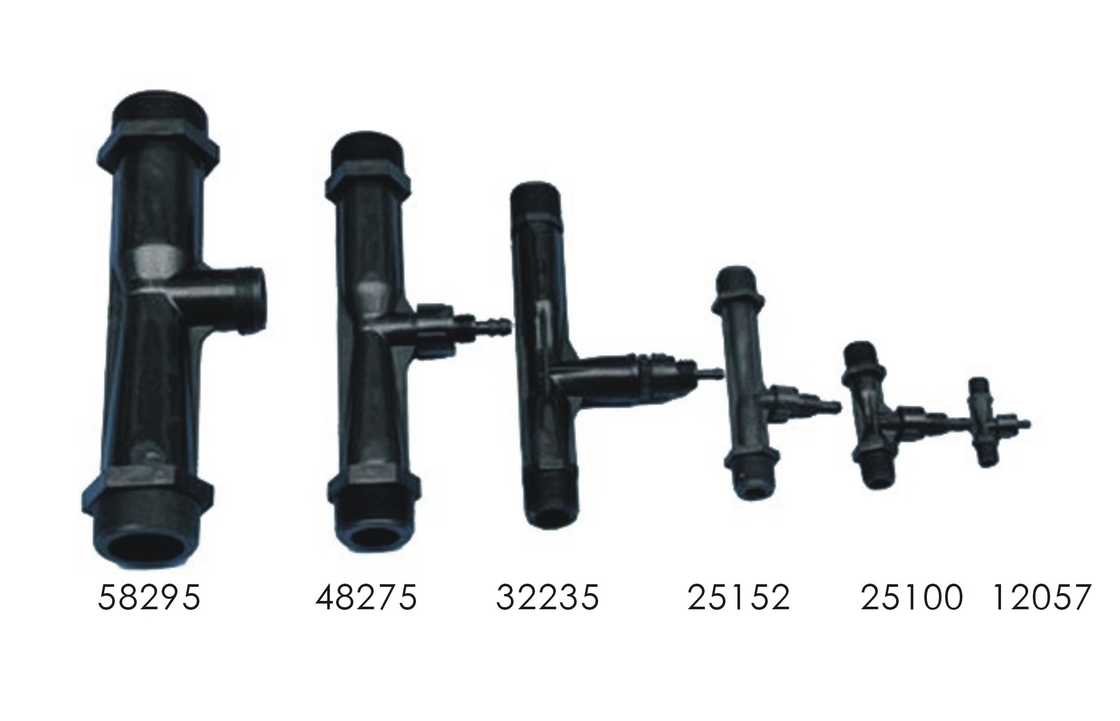

Venturi

Marks

Model

Quantity
(PC)

Size
(mm)

1

A12057

1

57

2

A25100

1

100

3

A32235

1

235

4

A25152

1

152

5

A48275

1

275

6

A58295

1

295

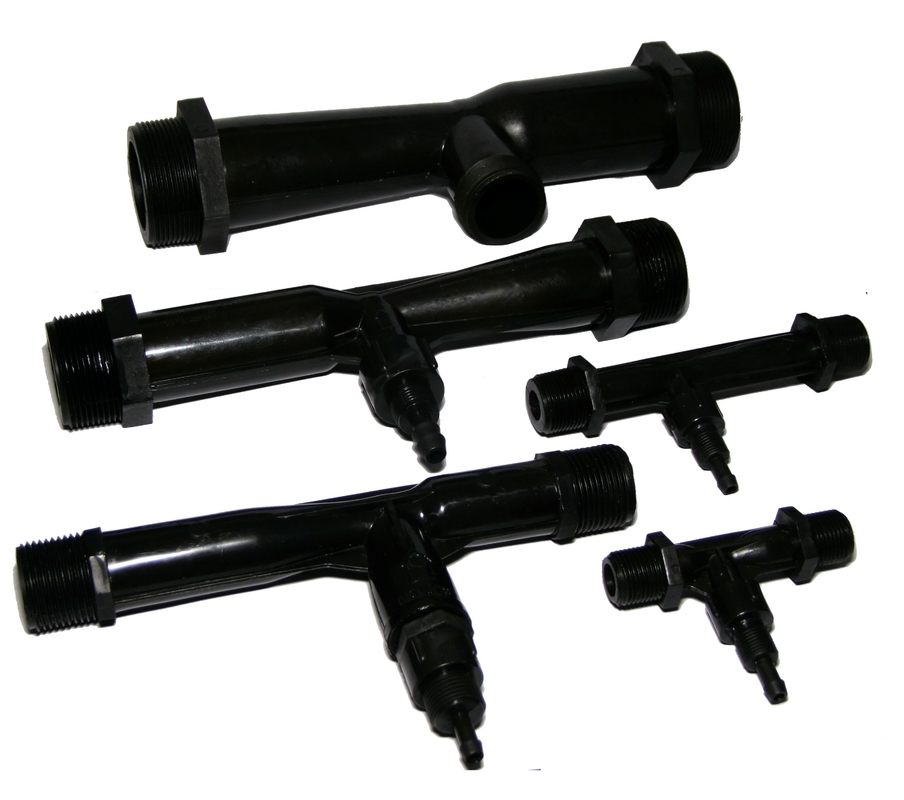

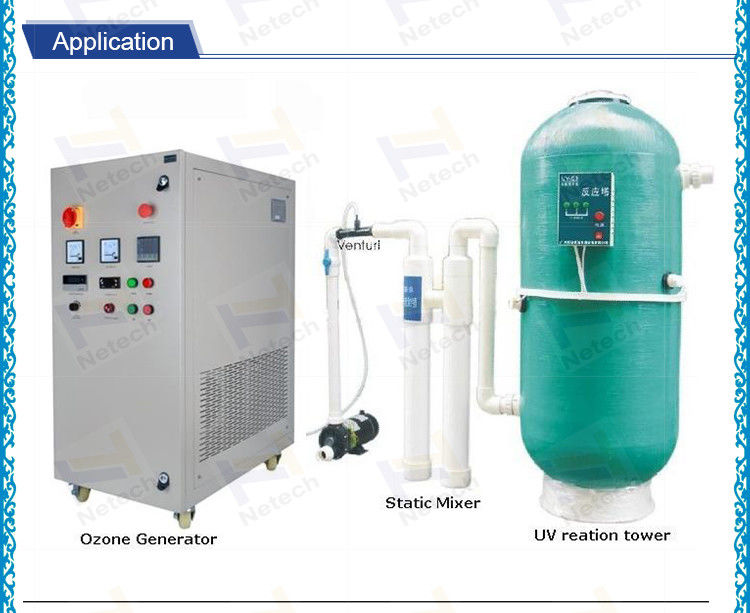

Venturi is designed to be used with an ozone generator for water treatment. It is made of anti-ozone material, PVDF. Connected to your existing filtration system it allows an ozone injection point, where the vacuum effectively sucking the ozone gases into the water flow

Specifications

Model: A12057
Material:PVD
Water flow rate:0.05-0.25 T/Hr
Specification:

1.   Inlet & Outlet diameter 1/5’’ external screw thread

2.   Valve bonnet of Gas Inlet is 1/8”;

3.   flexible hose is 1/4’’;

4.   Length: 57 mm

Model: A25100
Material:PVDF
Water flow rate: 0.1-1 T/Hr
Specification:

1.   Inlet & Outlet diameter 1/2’’ external screw thread

2.   Valve bonnet of Gas Inlet is 1/4”;

3.   flexible hose is 1/4’’;

4.   Length: 100 mm

Model : A32235
Material: PVDF
Water flow rate:3-10 T/Hr
Specification:

1.   Inlet & Outlet diameter 1’’ external screw thread.

2.   Valve bonnet of Gas Inlet is 1/2”;

3.   flexible hose is 3/8”

4.   Length: 230 mm

Model: A25152
Material: PVDF
Water flow rate: 1~3 T/Hr
Specification:

1.   Inlet & Outlet diameter3/4’’ external screw thread

2.   Valve bonnet of Gas Inlet is 1/4”;

3.   flexible hose is 1/4’’;

4.   Length: 152 mm

Model: A48275
Material: PVDF
Water flow rate:10~25 T/Hr
Specification:

1. Inlet & Outlet diameter 1.5’’ screw thread
2. Valve bonnet of Gas Inlet is 1/2”;
3. flexible hose is 1/2’’;
4. Length: 275mm

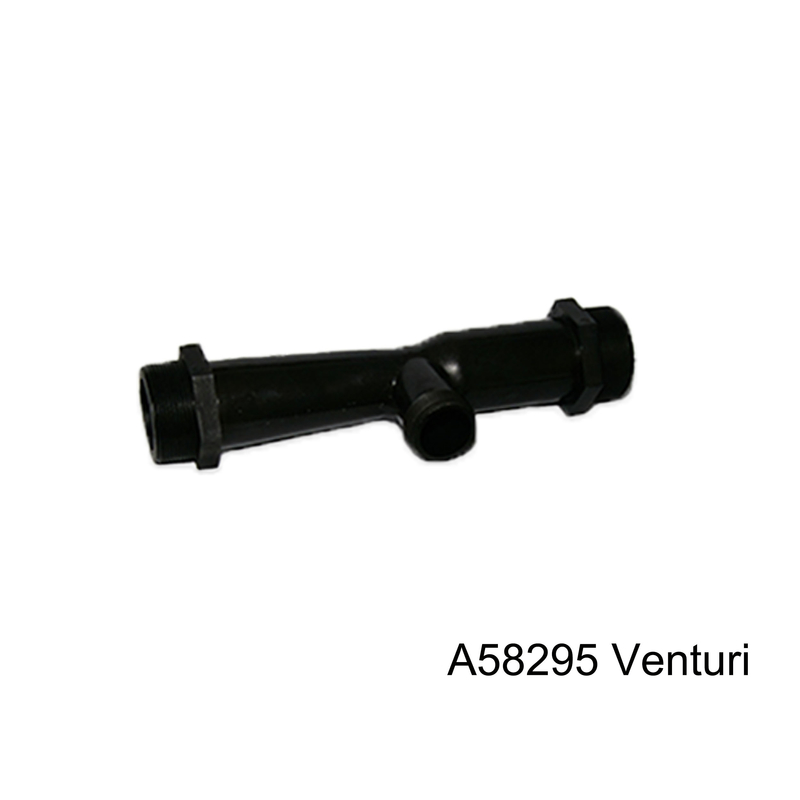

Model: A58295
Material: PVDF
Water flow rate: 25~50T/Hr
Specification:

1.   Inlet & Outlet diameter 2’’ screw thread

2.   Valve bonnet of Gas Inlet is 1.25”;

3.   flexible hose is 1/2’’;

4.   Length: 295mm
